Ermaksan Fibermak Hawk
Table Size: 60” x 120”
Machine Travels (X/Y/Z) 120” x 60” x 4”
Max Cutting Height: 16 mm (0.6 in)
Minimum Cutting Height: Min.: 5 mm (0.2 in)
Cutting Speed: 106,000 mm/min
Configuration: flatbed, 3-axis
Laser Power (Min & Max): 500 - 4,000 w
Repeatability: 0.05 mm (0.002 in)
Charmilles Cut 20 P
X-Axis Travel: 150”
Y-Axis Travel: 60”
Z-Axis Travel: 28”
Table Size: 60 x 150"
Max Cutting Feed Rate: 500 IPM
Max Tool Weight: 15 lbs
Spindle Taper: ISO No. 40 Big Plus
Permissible weights and types of spools (ISO): 8, 25 kg
Milltronics BR6150IL
Table Size: 27.55” x 18.89”
Machine Travels (X/Y/Z) 13.78” x 9.84” x 9.48”
Max Workpiece Size: 32.28” x 26.77” x 9.84”
Max Workpiece Weight: 882 lbs
Spool Weight: 17.6, 55**
Wire Speed: 1.18 - 13 in/s
Max Taper Angle: (2.24 in)
Wire Tension: 3 - 30

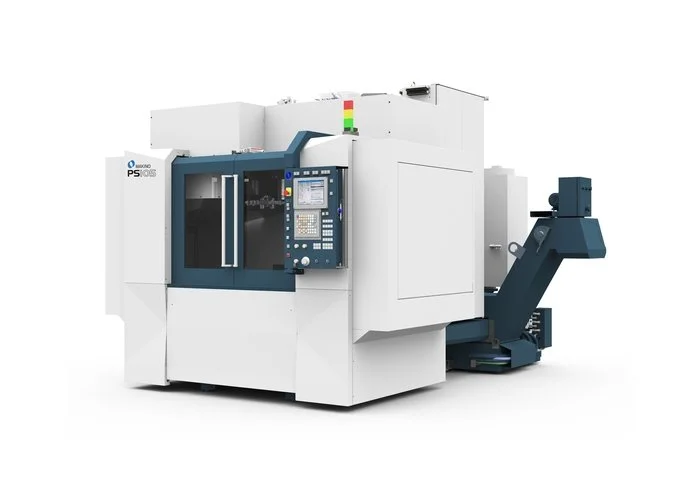

Makino PS105
Table Size: 51.1" x 20"
X-Axis Travel: 41.3"
Y-Axis Travel: 20.0"
Z-Axis Travel: 18.1"
Spindle RPM 14,000 RPM
Rapid Traverse: X-axis - 1,890 ipm, Y & Z Axes - 1,417 ipm
Cutting Feedrate: 1,181 ipm
Maximum Tool Weight: 17.6 lbs
Milltronics VM4222IL
Table Size: 46” x 22”
Machine Travels (X/Y/Z) 42” x 22” x 24”
Spindle To Table Distance: 5”-29”
Table Capacity: 3660 lbs
Spindle Taper: BIG-PLUS® ISO No. 40
Spindle Speeds: 12,000 RPM
Rapid Traverse Rate: 1200/1000 IPM
Max Tool Weight: 15.4 lbs
Chevalier QP2560-L
Table Size: 65” x 25”
X/Y/Z travel: 60.0" / 25.0" / 25.0"
Max Table Load: 3,300 lbs.
Spindle Speed: 120-10,000 rpm
Spindle to Table: 4.9" - 29.9"
Rapid Traverse Rate: 1,181/1,181/944 ipm
Cutting Feed Rate: 39.3 - 393 ipm
Max Tool Weight: 15.4 lbs.
Milltronics VM25
Table Size: 56" x 24"
Machine Travels (X/Y/Z) 50" x 25" x 24"
Spindle To Table Distance: 4" - 28"
Table Capacity: 3,500 lbs
Spindle Taper: Cat 40
Spindle Speeds: 0-8,000 RPM
Rapid Traverse Rate (X/Y/Z): 1,000 IPM
Maximum Cutting Feed Rate: .1-400 IPM

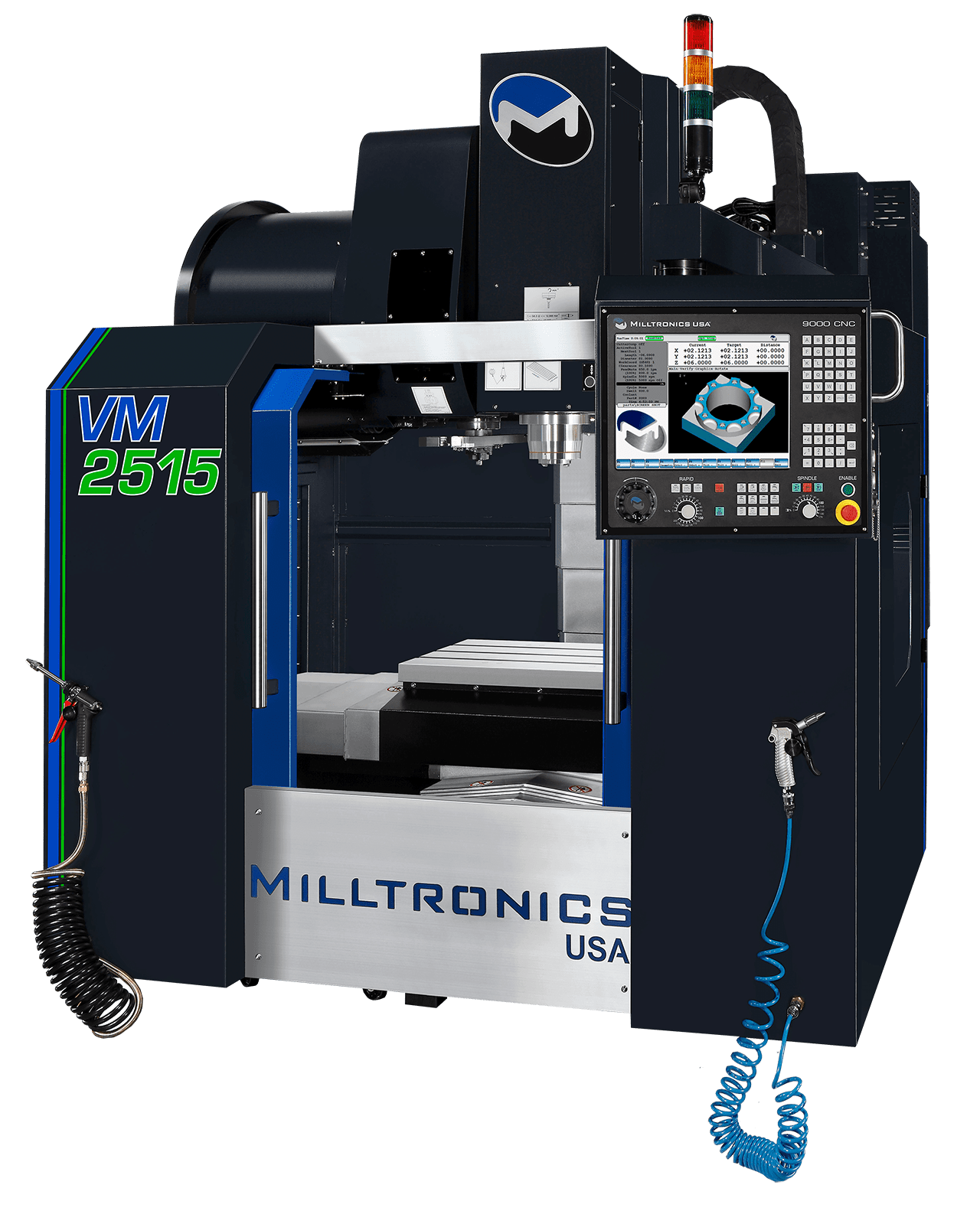

Milltronics VM2515
Table Size: 30” x 16”
Machine Travels (X/Y/Z) 25” x 15” x 20”
Spindle To Table Distance: 4”-24”
Table Capacity: 3140 lbs
Spindle Taper: BIG-PLUS® ISO No. 40
Spindle Speeds: 10,000 RPM
Rapid Traverse Rate: 945 IPM
Max Tool Weight: 15.4 lbs
Akira Seiki Performa SR3 XP
X/Y/Z Travel: 30” x 16.9” x 18.1”
Table size: 36” x 15”
Max. loading: 1746 lbs
Spindle speed: 11,000rpm
Max. motor power: 15 HP
Rapid feed X/Y/Z: 30 / 30/ 24 m/min
Cutting Feed X/Y/Z: 10 / 10 / 10 m/min
Standard Loading: 1455 lbs.
Takisawa EX-2000YS
Max Turning Diameter: 15.35”
Max Turning Length: 21.10”
Max Workpiece Swing: 19.7”
Max Bar Work Capacity: 2.55" / 2.05"
X/Y/Z Travel: 9.85”x15.35”x21.10”
Spindle Speed: 4,500 / 5,000 rpm
Spindle Nose: A2-5 / A2-6
Through Hole Diameter: 3" / 2.4"
Takisawa LA-250YS
Max Swing: 23.6
Max Turning Diameter: 14.5
Max Tuning Length: 29
Spindle Speed: 3500 rpm
Bar Capacity: 2.9/2
Chuck Size: 10”
Number of Head Stock: 2
Number of Tools: T12/T15
Chevalier FBL-300
Z / X Axis: 25.2" / 11.4"
Max Cutting Diameter: 20"
Max Cutting Length: 23.4"
Distance Between Centers: 29.4"
Max Bar Size: 1 3/4"
Spindle Hole Diameter: 3.5"
Spindle Speed: 2500 rpm
Number of Tools: 10
Mazak Super Quick Turn 10MS
Max. Machining Diameter: 9"
Max. Machining Length: 12.02"
Max Bar Work: 1.625"
Spindle Speed: 35-6000 RPM
Rapid Feedrate (X / Z Axis): 1180 IPM
Turret Type: V12 Block w/ Live Tooling
